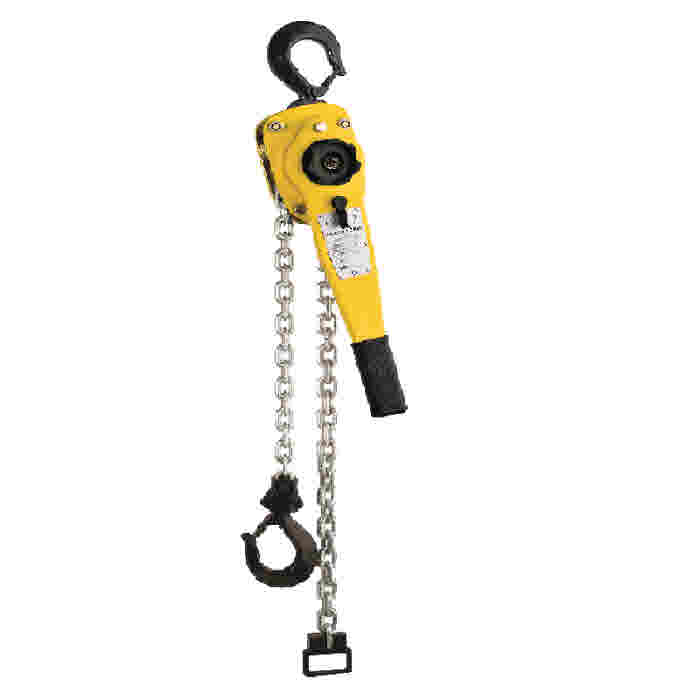

Yale UNOplus Ratchet Lever Hoist

Description

About the Yale UNOplus Ratchet Lever Hoist:

Yale UNOplus Ratchet Lever Hoist
Capacity 750 – 6000 kg

The UNOplus – Series A ratchet lever hoist is the result of
further technical development of the UNOplus, which has
proven itself over many years.
The versatile tool for lifting, pulling and securing of loads
is characterised by its compact design, robust stamped
steel construction and the smoothly running free chaining
device. The further reduced weight optimizes operation,
makes the application even more comfortable and the
UNOplus – Series A to a convenient, versatile device.

Features

• Due to optimized gearing and improved bearings in the
housing cover a minimum effort is required to operate
the short hand lever.
• Steel hand wheel as standard.
• Automatic screw-and-disc type load brake with corrosion
protected components.
• Standard free chaining device to quickly attach the load
or to pull the chain through the hoist in both directions.
• Robust chain guide rollers eliminate fouling and jamming
of chain on the load sheave.
• Robust chain end stop.
• Comfortable rubber grip provides for extra protection
against slippage.
• Alloyed steel link chain with zinc-plated resp. yellow
chromated finish, in accordance with national and
international standards and regulations.
• Forged suspension and load hooks are made from nonaging,
high tensile steel and fitted with robust safety
latches.

Note: All ratchet lever hoists with a capacity exceeding 750 kg
can be used for load attachment according to EN 12195.

Yale hoists and trolleys are not designed for passenger
elevation applications and must not be used for this
purpose.

*Please contact us for more information on this product
