Same-Day Despatch on Most Sizes: Fast turnaround to keep your lifting operations moving.
-
Certificates Supplied at No Extra Cost: Includes Certificate of Conformity and Report of Thorough Examination.
-
Re-Certification Available: Hawk Lifting can fully re-certify these lifting points when required.
-
360° Rotation & 90° Pivot: Allows optimal load alignment and positioning during lifting.
-
RFID Chip Installed: Instant digital access to certificates and pre-use checks.
-
Manufactured From Alloy Steel: Quenched and tempered for strength and durability.
-
Tested to EN1677-1 & DGUV GS-OA 15-04: Meets strict international lifting standards.
-
Proof Tested to 2.5× WLL & Fatigue Rated to 1.5× WLL: Ensures high safety performance.
-
Design Factor 4:1: Robust and reliable under demanding lifting conditions.
-
100% Magnaflux Crack Detection: All load-bearing components are non-destructively tested.
-
Easy Installation: Requires only a tapped hole; quick to fit.
Yoke Type 211 Lifting Point Metric Thread
From £40.50 - Guide Price
Description

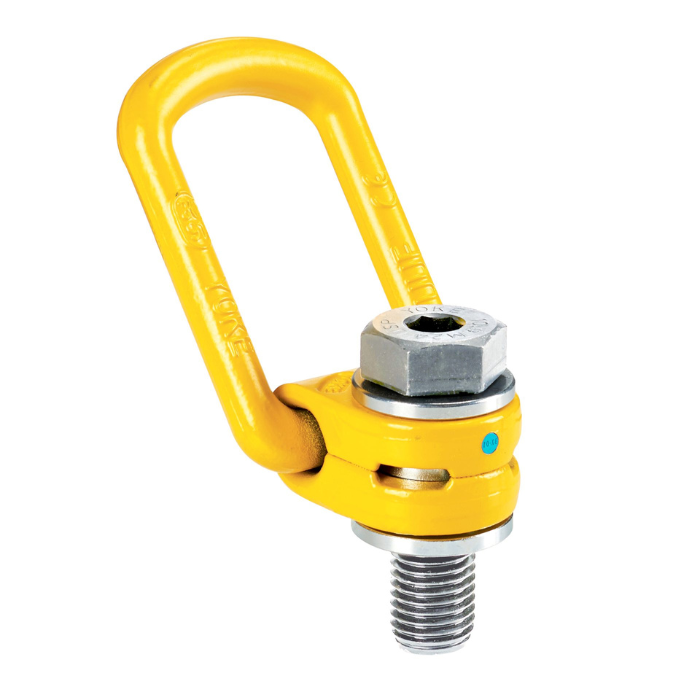

Yoke Lifting Point Type 211 – Swivel Lifting Eye | 360° Rotation, 90° Pivot
The Yoke Lifting Point Type 211 is a high-performance lifting point / swivel load ring designed for versatile lifting applications. Engineered from premium alloy steel and rigorously tested, this lifting point offers safety, flexibility, and traceability for industrial lifting operations.
Every lifting point is supplied with a Certificate of Conformity and a Report of Thorough Examination, and features an RFID chip for instant access to certification and pre-use checks.
Key Features
-
360° Rotation & 90° Pivot: Provides maximum flexibility for load alignment and positioning.
-
Certificate of Conformity & Traceability: Every lifting point comes with certification, and individual forged parts are traceable to test certification.
-
RFID Enabled: Instant access to manufacturer’s certificates and pre-use checks via embedded RFID chip.
-
Customisable Thread Length: The thread can be cut to the required length if needed.
-
Premium Alloy Steel Construction: Quenched and tempered for maximum strength and durability.
-
EN1677-1 & DGUV GS-OA Certified: Manufactured and tested to international lifting standards.
-
Load Rated & Proof Tested: 100% magnaflux crack detected, proof tested to 2.5× WLL, and fatigue rated to 1.5× WLL.
-
Design Factor 4:1: Ensures robust and reliable lifting performance.
-
ASME B30.26 Compliant: Meets or exceeds all applicable requirements for industrial lifting points.
-
Quick & Simple Assembly: Requires only a tapped hole for installation.
-
Also Known As: ‘Pinky’s’ or ‘Pinky Swivels’ in lifting operations, as well as ‘Lifting Eyes’, ‘Lifting Points’.
Applications
The Yoke Lifting Point is ideal for a wide range of lifting tasks, including:
-
Lifting objects with no obvious attachment points.
- Lifting at angles
-
Mold and die handling.
-
Pump and valve handling.
-
Lashing attachment points.
-
Attachment to lifting beams and spreader beams.
Hawk Lifting are proud to offer a wide range of Yoke products
View our full range of Lifting Points here
Additional information
| Weight | N/A |
|---|---|

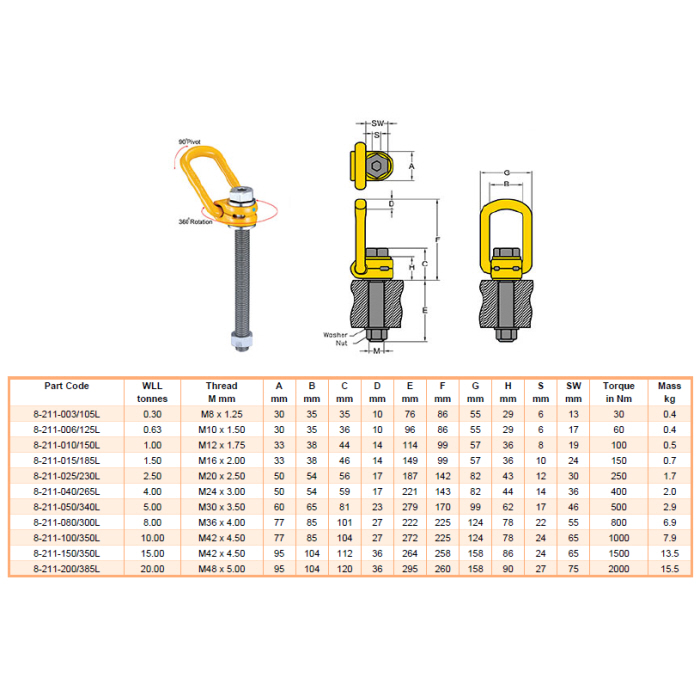

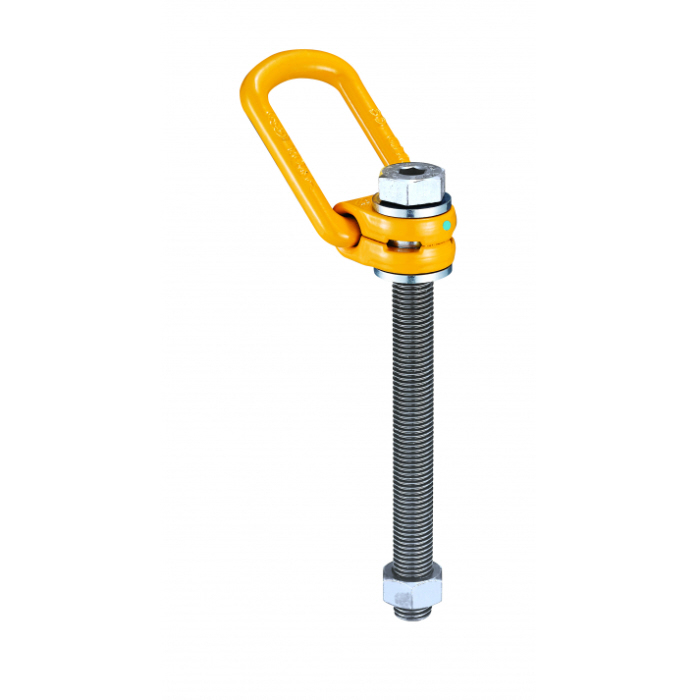

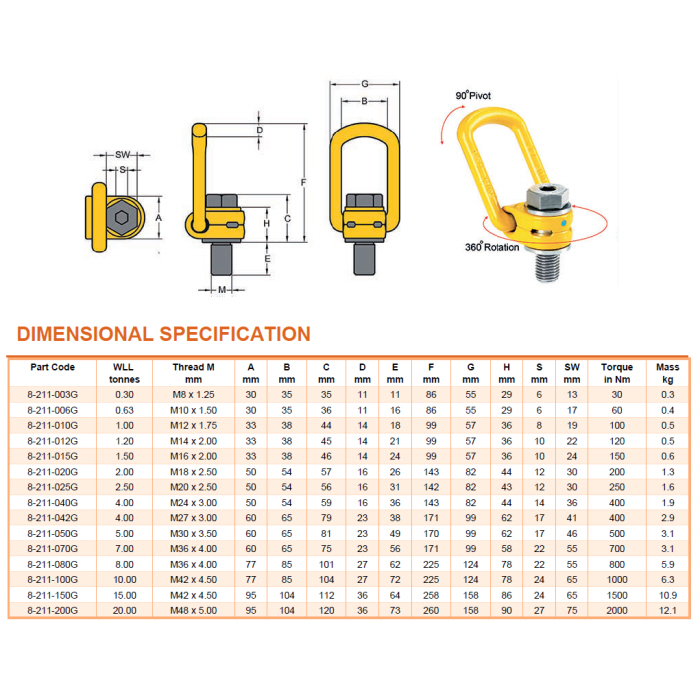

| Size | M8 0.3t, M8 0.3t – Extended Thread, M10 0.63t, M10 0.63t – Extended Thread, M12 1.0t, M12 1.0t – Extended Thread, M14 1.2t, M16 1.5t, M16 1.5t – Extended Thread, M18 2.0t, M20 2.5t, M20 2.5t – Extended Thread, M24 4.0t, M24 4.0t – Extended Thread, M27 4.0t, M30 5.0t, M30 5.0t – Extended Thread, M36 7.0t, M36 8.0t, M36 8.0t – Extended Thread, M42 10.0t, M42 10.0t – Extended Thread, M42 15.0t, M42 15.0t – Extended Thread, M48 20.0t, M48 20.0t – Extended Thread |
