Multiple Lifting Speeds: Yale CPV models offer a single lifting speed, while Yale CPV/F models provide two different lifting speeds for greater operational flexibility.
- Customisable Configurations & Chain Lengths: Adaptable to your exact lifting height and suspension requirements.
-
High Stock & Fast Lead Times: Ready-to-ship units ensure minimal downtime and rapid delivery.
-
Available in Multiple Capacities: Lifting capacities from 250 kg up to 5000 kg to suit a wide range of applications.
-
Advanced Safety Features: 42 V low-voltage control, integrated limit switches, and electromagnetic spring-pressure brake.
-
Durable Construction: Oil-bath gearbox with helical gearing and robust all-steel or thermoplastic chain guides.
-
Flexible Suspension Options: Top hook, lug, or integrated trolley; easily retrofittable.
-
Optional Accessories & Upgrades: Radio remote controls, frequency inverters, wall-mounted controls, thermal sensors, and more.
-
High Protection & Reliability: IP55 rating for dust and water resistance, 2-year warranty (excluding wear parts).
-
Smooth & Efficient Operation: Slip clutch overload protection outside the force flow for safety and longevity.
Yale CPV & CPV/F 400v Electric Chain Hoists (400v 3Ph 50hz)
From £1,674.37 - Guide Price
Description

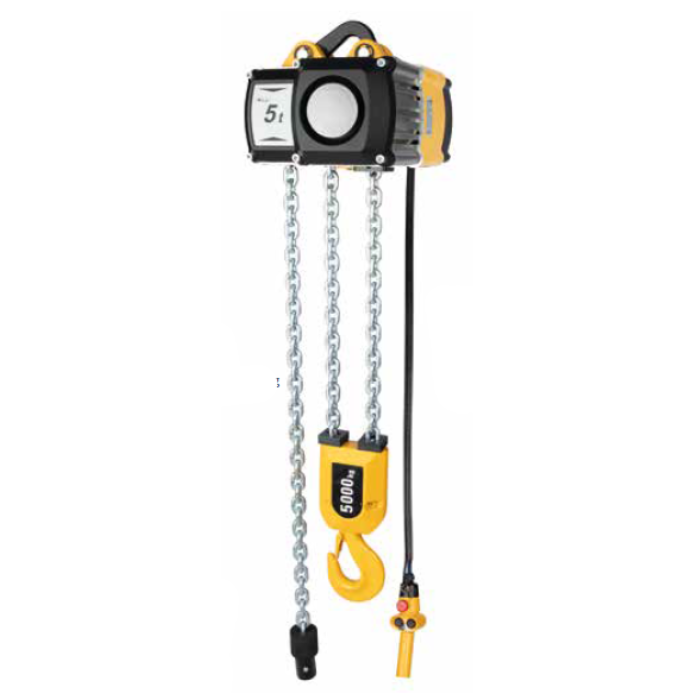

Yale CPV & CPV/F Electric Chain Hoist – High-Performance Lifting for Professional Applications
The Yale CPV & CPV/F Electric Chain Hoist is engineered for reliability, safety, and long service life. Combining modern design with advanced lifting technology, the Yale CPV & CPV/F series is ideal for industrial, commercial, and workshop environments where consistent performance matters. With its robust construction and smart safety features, this electric chain hoist delivers smooth, efficient, and dependable load handling every day.
The Yale CPV is the model with a single lifting speed, and the CPV/F is the option with 2 x lifting speeds.
Key Features of the Yale CPV & CPV/F Electric Chain Hoist
Advanced Safety & Control
-
42 V low-voltage control system with main contactor enhances operator safety.
-
Integrated upper and lower limit switches protect the slip clutch, motor, and gearbox by preventing over-travel.
-
Electromagnetic spring-pressure brake safely holds the load—even in the event of a power failure.
-
Overload protection located outside the force flow ensures higher safety and mechanical durability.
Durable & High-Performance Construction
-
Oil-bath gearbox with helical gearing for smooth, quiet operation and extended lifetime.
-
Smaller models use semifluid grease for optimized performance (Yale CPV & CPV/F 2-8, 5-4, Yale CPV & CPV/F 2-4, 5-2).
-
Tough all-steel chain guide for maximum durability.
-
Smaller models use a high-strength POM thermoplastic chain guide integrated into the housing.
-
-
IP55 protection class for superior resistance to dust and moisture.
-
Backed by a 2-year manufacturer warranty (excluding wear parts).
Flexible Installation Options
-

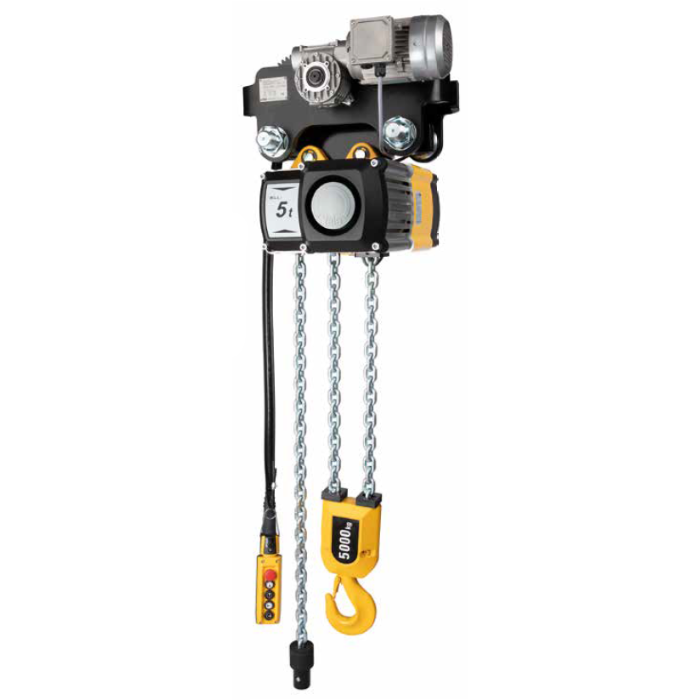

Available with top hook, lug suspension, or an integrated trolley.
-
Easy retrofit to alternative suspension types.
-
Custom lifting heights available with any chain length required.
Optional Upgrades & Accessories
Enhance your Yale CPV & CPV/F hoist with a wide range of optional equipment:
-
Alternative operating and control voltages
-
Flexible chain containers
-
CEE plugs with built-in phase-changing switch
-
Radio remote control systems, including versions compliant with DIN EN 13849-1, PL “d”
-
Pluggable control pendants for quick connection
-
Wall-mounted control stations
-
Rotary limit switch for additional position safety
-
Frequency inverters for stepless speed control and soft start/stop ramping
-
Suspensions rotated by 90°
-
Thermal sensors for motor protection
Why Choose the Yale CPV & CPV/F Electric Chain Hoist?
The Yale CPV & CPV/F series offers a highly versatile lifting solution with long-lasting components, advanced safety mechanisms, and flexible configurations. Its design supports demanding industrial applications while minimizing maintenance needs and maximizing uptime. Whether you’re upgrading existing lifting equipment or planning a new installation, the Yale CPV & CPV/F Electric Chain Hoist delivers outstanding performance and reliability.
Please contact us to receive more information or quotation for this product:
Additional information
| Size | CPV 2-8, CPV/F 2-8, CPV 5-4, CPV/F 5-4, CPV 5-8, CPV/F 5-8, CPV 10-4, CPV/F 10-4, CPV 10-8, CPV/F 10-8, CPV 20-4, CPV/F 20-4, CPV/F 25-8, CPV/F 50-4 |
|---|
