About the Crosby G517 Mooring Socket – M-Line:

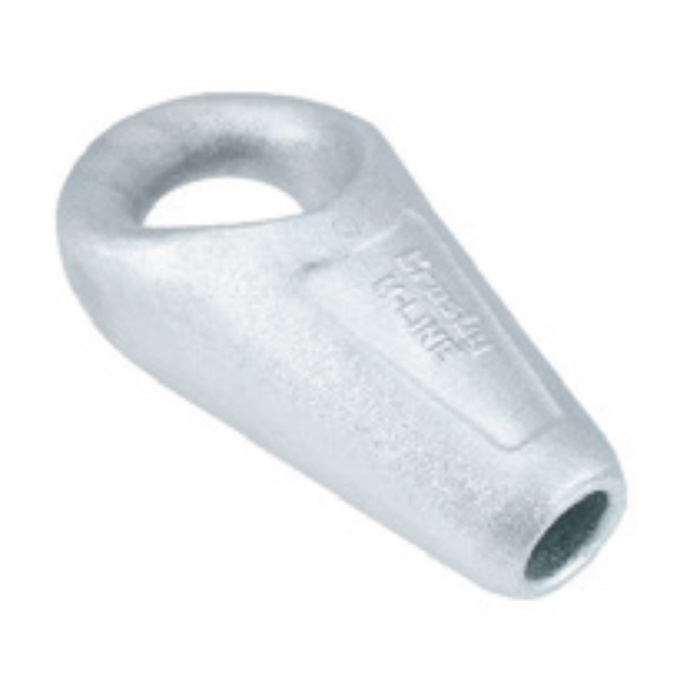

Crosby G517 Mooring Socket – M-Line
- Wide range of sizes available: 32mm through 102mm Wire Line.
- “M-Line” socket terminations have a 100% efficiency rating, based
on the catalog strength of the wire rope. - Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 37, IPS or XIP (EIP), XXIP
(EEIP), RRL, FC, or IWRC wire rope. - Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket
basket length be five times the strand diameter or fifty times
the wire diameter, whichever is the greater. - Galvanized finish.
- The sockets are designed for today’s higher strength classes of wire rope.
- Design of bail allows for easy connection to shackles and other
connecting links. - Socket design utilizes features to keep cone from rotating.
- Type approved and Certification in accordance with DNV’s Rules for
Certifications of Lifting Appliances, 2011 – DNV’s Offshore Standard
DNV-OS-E101, Drilling Plant, October 2009. - All Cast Mooring Sockets are Individually Magnetic Particle Inspected and Ultrasonic Inspected.
Wire Rope Size | Ultimate Load
(t) |
G-517 Stock No. |
Weight Each (kg) | Dimensions (mm) | ||||||||
(mm) | (in) | A | B | C | D | E | F | G | H | |||
32-35 | 1-1/4 – 1-3/8 | 113 | 1004943 | 7.7 | 41.4 | 78.5 | 92.2 | 113 | 36.6 | 130 | 277 | 38.9 |
38-41 | 1-1/2 – 1-5/8 | 136 | 1004961 | 13.6 | 49.5 | 93.7 | 110 | 138 | 40.6 | 160 | 330 | 46.0 |
44-48 | 1-3/4 – 1-7/8 | 181 | 1004989 | 19.5 | 56.6 | 106 | 115 | 160 | 46.7 | 183 | 358 | 53.1 |
50-54 | 2 – 2-1/8 | 227 | 1005002 | 25.9 | 63.5 | 121 | 134 | 178 | 53.1 | 210 | 407 | 56.9 |
57-60 | 2-1/4 – 2-3/8 | 277 | 1005020 | 34.5 | 70.6 | 133 | 146 | 196 | 58.7 | 233 | 455 | 66.6 |
64-67 | 2-1/2 – 2-5/8 | 363 | 1005048 | 48.1 | 77.5 | 149 | 170 | 217 | 68.3 | 257 | 505 | 67.6 |
70-73 | 2-3/4 – 2-7/8 | 454 | 1005066 | 62.6 | 84.6 | 165 | 181 | 237 | 76.2 | 282 | 549 | 63.0 |
76-79 | 3 – 3-1/8 | 544 | 1005084 | 87.5 | 89.9 | 184 | 197 | 262 | 82.6 | 313 | 597 | 82.3 |
82-86 | 3-1/4 – 3-3/8 | 635 | 1005105 | 104 | 96.8 | 194 | 224 | 278 | 88.9 | 334 | 654 | 87.1 |
88-92 | 3-1/2 – 3-5/8 | 735 | 1005123 | 127 | 105 | 203 | 230 | 298 | 93.7 | 355 | 703 | 105 |
95-102 | 3-3/4 – 4 | 907 | 1005141 | 174 | 112 | 222 | 267 | 328 | 93.7 | 403 | 765 | 113 |
Hawk Lifting are proud to be one of the leading Authorised Distributors for Crosby
View our full range of Wire Rope Fittings here
Additional information
Weight | N/A |
---|---|
Wire Rope Diameter | 32-36mm, 38-31mm, 44-48mm, 50-54mm, 57-60mm, 64-67mm, 70-73mm, 76-79mm, 82-86mm, 88-92mm, 95-102mm |
