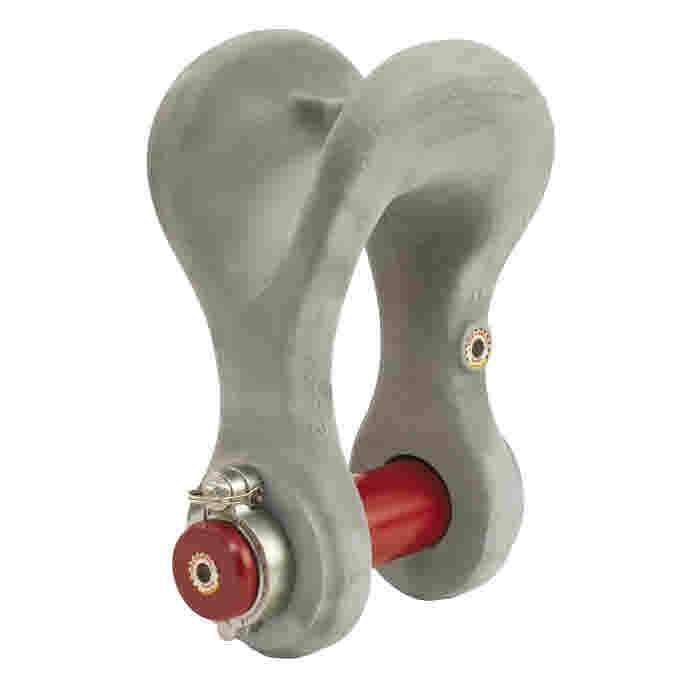

Crosby G2170 Grommet Shackle

Description

About the Crosby G2170 Grommet Shackle:

• All sizes Quenched and Tempered for maximum strength.
• All sizes cast alloy steel.
• Sizes 300 metric tons and smaller are proof tested to 2 times the Working Load Limit.
• All ratings are in metric tons, embossed on side of bow.
• G-2170 bows are furnished Dimetcoted and pins are Dimetcoted, then painted red.
• All sizes are RFID Equipped in bow and pin
• Designed for use with single or double large diameter grommets.
• Extra large sling contact area improves efficiency of the grommet sling.
• Shackles utilize new Crosby Easy-Loc bolt system
• Large machined flat on ears that can be drilled and tapped for adapting other accessories.
• HR-1000 Hoist Ring in Bow available for easy transporting
• Provides a bearing surface that is at least 5 times that of a round shackle.
• Increases usable sling strength minimum of 60% and greatly improves life of grommet slings.
• Bow and bolt are certified to meet charpy impact testing of 42 joules (31 ftlbs.) min. ave. at -20 degree C (-4 degree F).
• All 2170 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order.
• Shackles requiring ABS, Lloyds, and other certifications are available upon special request and must be specified at time of order.
• All 2170 shackles can meet requirements of DNV Standard for Certification of Lifting Appliances upon special request and must be specified at time of order.
• Serialization / Identification
• Material Testing (Physical / Chemical / Charpy)
• Proof Testing
• Look for the Red Pin®….the mark of genuine Crosby quality.

***Please contact us for prices and availability
