Grade 50 316L Stainless Steel Pump Lifting Chain

Call for price - Guide Price

About Grade 50 316L Stainless Steel Pump Lifting Chain:

Capacities: 500 – 6300kg

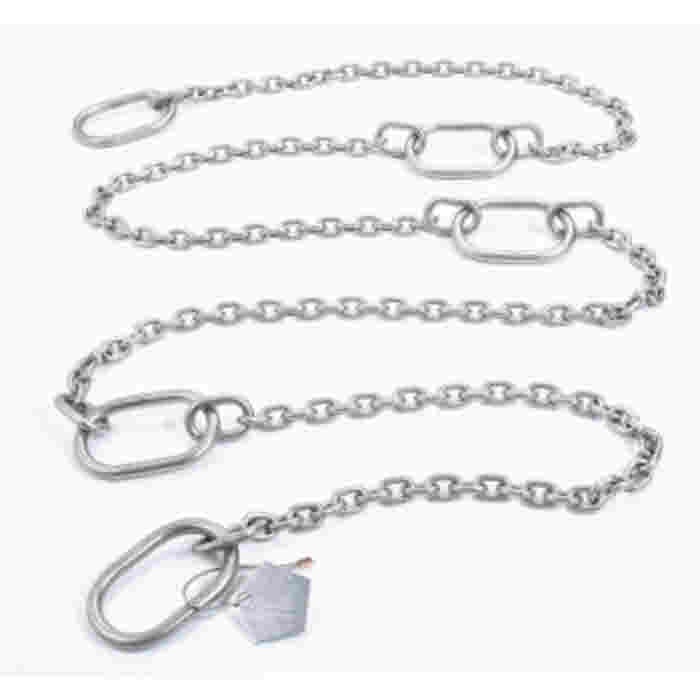

Grade 50 316L Stainless Steel Pump Lifting Chain fitted with Lifting Points at each end and at approx. 1m centres. Alternative lifting centres and configurations, i.e. double leg or triple leg branch to suit your individual needs can be manufactured at very short notice.

Please contact us for further details:

Contact Form

  • This field is for validation purposes and should be left unchanged.

Downloads

Description

About Grade 50 316L Stainless Steel Pump Lifting Chain:

Capacities: 500 – 6300kg

Grade 50 316L Stainless Steel Pump Lifting Chain fitted with Lifting Points at each end and at approx. 1m centres. Alternative lifting centres and configurations, i.e. double leg or triple leg branch to suit your individual needs can be manufactured at very short notice.

Production Features:

  • Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
  • European manufactured Gr.50 316L Short Link Chain.
  • Assembled, Welded and Tested at our Cradley manufacturing site

Quality Features:

  • Full traceability for all components used in manufacturing process
  • Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser
  • Every Enlarged Link embossed with our manufacturing Batch Number.
  • All assemblies are Proof Load Tested to 2.5 x W.L.L.
  • Factor of Safety: 4:1
  • Full certification supplied with every sling in accordance with Machinery Directive 2006 / 42 / EC

FINISH: POLISHED TEST: PROOF TESTED AND CERTIFIED PROOF LOAD 2.5 X W.L.L.   F.O.S. 4:1

Part Dimensions (mm) W.L.L. Weight Per M (Kg)
Code Chain (mm)D2 D1 L1 D L W L (approx.) (t)
PI5.050 5 6 28 10 80 50 600 / 1000 500 Kg 0.65
PI5.075 6 8 38 13 115 60 600 / 1000 750 Kg 0.85
PI5.100 7 8 38 13 115 60 600 / 1000 1 1.2
PI5.125 8 10 38 16 115 60 600 / 1000 1.25 1.5
PI5.200 10 13 54 18 135 75 600 / 1000 2 2.5
PI5.320 13 16 70 22 160 90 600 / 1000 3.2 4.2
PI5.500 16 22 115 26 180 100 600 / 1000 5 6.1
PI5.630 18 26 140 32 200 110 600 / 1000 6.3 7.8

***On Special Offer Contact Us for Prices

Please contact us for further details:

Contact Form

  • This field is for validation purposes and should be left unchanged.

Additional information

Model

P15.050 5mm, P15.075 6mm, P15.100 7mm, P15.125 8mm, P15.200 10mm, P15.320 13mm, P15.500 16mm, P15.630 18mm
